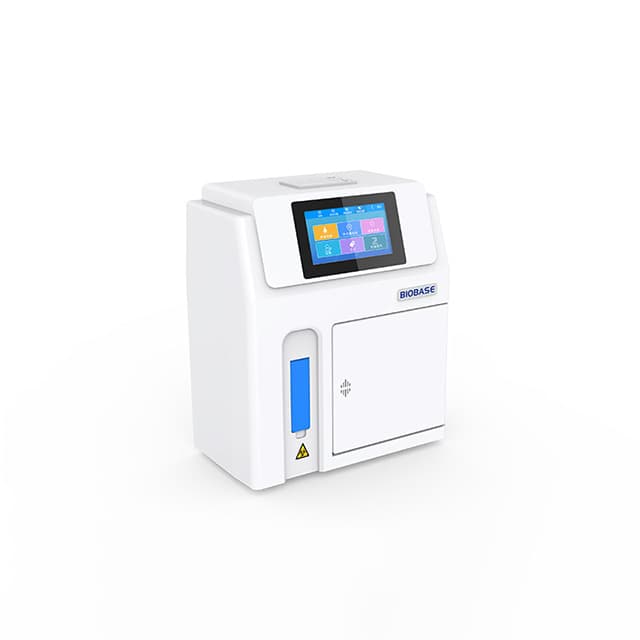

Electrolyte Analyzer

Detaljer

Features: 1. The software supports automatic potential tracking correction to ensure stable performance. 2. Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy. 3. Wave flushing and pipeline flushing can avoid blockage and cross-contamination. 4. Power-off protection, can protect data storage, the result can be stored up to 50,000. 5. Low consumption, effectively reducing the cost of consumables. 6. 7-inch high-definition touch screen, comprehensive content display. 7. With the function of automatic fault alarm and elimination, improve work efficiency. Technical Parameters: Model BKE-A/B/C/D BKE-E/F/L Sample Serum, plasma, whole blood, cerebrospinal fluid and dilute urine Measuring Speed ≤25s Analysis Method Ion selective electrode(ISE) Sample Volume 60~150μl 200μl Sample Position 30 sample positions, 5 emergency positions(Only for BKE-B/D/F/L) Injection mode Manual or automatic injection can be selected(Only for BKE-B/D/F/L), BKE-A/C/E is manually injection Storage Up to 50,000 test results Printer Build-in thermal printer Interface RS232 port for LIS Display 7-inch high-definition touch screen Language Chinese and English, other languages can be customized Calibration Automatic and manual calibration Other Function Sample volume detection Power Supply AC100~240V, 50/60Hz, 70VA Temperature +10~+40℃ Relative Humidity ≤80 % Atmospheric Pressure 86~106kPa Model BKE-A BKE-B BKE-C BKE-D Test Items K+, Na+, Cl- K+, Na+, Cl- K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH Sample Tray No Yes No Yes External Size(W*D*H)(mm) 405*214*471 682*287*471 405*214*471 682*287*471 Net Weight(kg) 12.48 15.11 12.48 15.11 Package Size(W*D*H)(mm) Instrument: 500*390*530 Reagent: 220*160*120, 220*160*120 Instrument: 500*390*720 Reagent: 220*160*120, 220*160*120 Instrument: 500*390*530 Reagent: 220*160*120, 220*160*120 Instrument: 500*390*720 Reagent: 220*160*120, 220*160*120 Gross Weight(kg) Instrument: 16.08 Reagent: 1.7, 0.9 Instrument: 19.31 Reagent: 1.7, 0.9 Instrument: 16.08 Reagent: 1.7, 0.9 Instrument: 19.31 Reagent: 1.7, 0.9 Model BKE-E BKE-F BKE-L Test Items K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG, Li+, Mg2+ Sample Tray No Yes Yes External Size(W*D*H)(mm) 405*214*471 682*287*471 682*287*471 Net Weight(kg) 13.13 15.76 15.76 Package Size(W*D*H)(mm) Instrument: 500*390*530 Reagent: 280*135*210, 220*160*120 Instrument: 500*390*720 Reagent: 280*135*210, 220*160*120 Instrument: 500*390*720 Reagent: 280*135*210, 220*160*120 Gross Weight(kg) Instrument: 16.73 Reagent: 2.2, 1.2 Instrument: 19.96 Reagent: 2.2, 1.2 Instrument: 19.96 Reagent: 2.2, 1.2 Items Measuring Range Resolution K+ 0.5~20.0mmol/L 0.01mmol/L Na+ 15~200mmol/L 0.01mmol/L Cl- 15~200mmol/L 0.01mmol/L Ca2+ 0.1~6.0mmol/L 0.01mmol/L pH 4~9 0.01 TCO2 2.0~70.0mmol/L 0.1mmol/L Li+ 0.1~6.0mmol/L 0.01mmol/ L Mg2+ 0.1~4.0mmol/L 0.01mmol/ L
