Clinical & AnalyticalBB-170904638
Automatic Chemiluminescence Immunoassay System BKI5800
Introduction: The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers. These particles can be evenly distributed in the liquid phase reaction system, enabling faster reaction speed and higher efficiency. Using the enzymatic chemiluminescence method, the light signal is more stable. It adopts a new generation of enzymatic substrates, with higher sensitivity and faster luminescence.
Specifications
- ModelBKI5800
- Throughput600T/H
- PrincipleMagnetic particle enzymatic chemiluminescence
- Modes of OperationRandom, batch and STAT
- Separation MethodMagnetic separation technology
- Sample Positions350pcs(Each position could be used as an emergency position)
- Reagent Positions50pcs(2-8℃ refrigeration)
- Incubation Positions238pcs
- Time to 1ˢᵗ Result18min
- Sample Volume10~200μl
- Detection PrecisionCV≤3%
- Carry-over Rate≤10⁻⁵
- Correlation Coefficientr≥0.99
- Calibration Type6/7-point calibration
- Software SystemComes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management
- InterfaceTCP/IP Network interface
- Other FunctionSample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection.
- Power SupplyAC110/220V, 50/60Hz, 1550VA
- External Size (W*D*H)972*1225*1495mm; 1505*1225*1245mm
- Net Weight160kg; 500kg
- Package Size (W*D*H)1410*1350*1170mm; 1685*1410*1460mm
- Gross Weight235kg; 600kg
Details
Features: 1. Innovative D esign, A ccelerated D etection Detection speed of 600T/h, first results within 18 minutes. Solid-state direct heating incubation ensures more stable and precise temperature control. Dual-channel design for more efficient sample loading. 2. Intelligent and Convenient for a Better Experience User-friendly design with a rocker arm display and one-button power on/off. Bulk loading of reaction cups, one-button loading of consumables, dual-bottle substrate backup, and convenient and quick operation. RFID function makes reagent loading even more convenient. 3. Highly Integrated and Stable Performance Highly integrated design with a small footprint. CV value ≤3%, high precision. Intelligent needle cleaning technology combined with scheduling control technology ensures cleaner cleaning. 4. Compatible with I nterconnectivity Supports 1-4 units for online expansion to meet various testing needs. Equipped with rich interfaces, it supports network functionality and allows for remote upgrades after networking. Technical Parameter : Model BKI5800 Throughput 600T/H Principle Magnetic particle enzymatic chemiluminescence Modes of Operation Random, batch and STAT Separation Method Magnetic separation technology Sample Positions 350pcs(Each position could be used as an emergency position) Reagent Positions 50pcs(2-8℃ refrigeration) Incubation Positions 238pcs Time to 1ˢᵗ Result 18min Sample Volume 10~200μl Detection Precision CV≤3% Carry-over Rate ≤10⁻⁵ Correlation Coefficient r≥0.99 Calibration Type 6/7-point calibration Software System Comes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management Interface TCP/IP Network interface Other Function Sample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection. Power Supply AC110/220V, 50/60Hz, 1550VA External Size (W*D*H) 972*1225*1495mm; 1505*1225*1245mm Net Weight 160kg; 500kg Package Size (W*D*H) 1410*1350*1170mm; 1685*1410*1460mm Gross Weight 235kg; 600kg
You may also like
Clinical & Analytical
Clinical & Analytical View product5-Part Auto Veterinary Hematology Analyzer BH-HA610VET
Introduction: The 5-Part Auto Veterinary Hematology Analyzer BH-HA610VET is a benchtop analyzer designed for complete blood count testing in veterinary clinics and animal hospitals. It features advanced sweep flow technology for accurate PLT counting, an LCD touchscreen operable with rubber gloves, and one-button testing with one-button fault clearing. The patented SMART-FLOW liquid circuit ensures efficient and reliable fluid handling for daily diagnostic use.
Clinical & Analytical View productBlood Culture Bottle
Introduction: Blood Culture Bottle are suitable for the cultivation of pathogenic bacteria in clinical blood and other sterile body fluids.
Clinical & Analytical View productAutomated Blood Culture System
Introduction: Automated Blood Culture System comprises a constant temperature system, oscillating mixing system, detection system, computational control system, and power supply system.Adopting continuous monitoring technology, it enables rapid detection of pathogenic microorganisms in blood and sterile body fluid specimens. It meets the diagnostic needs for bloodstream infections and provides a scientific basis for antibiotic therapy.

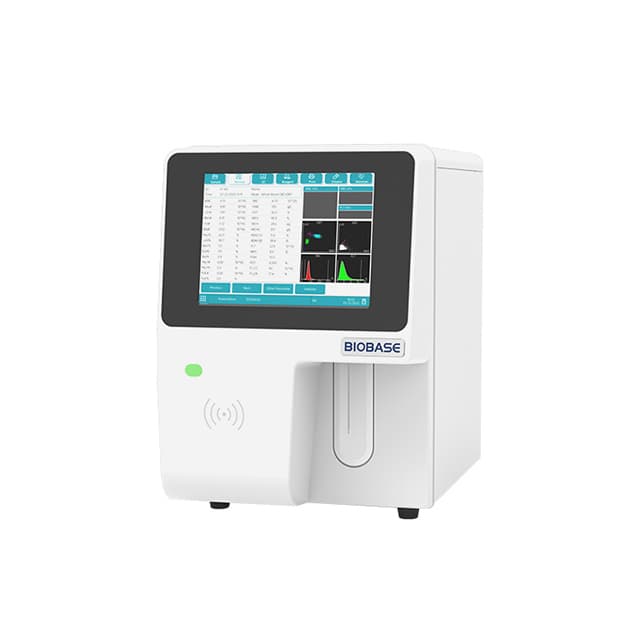

Clinical & Analytical View product5-part Auto Hematology Analyzer BH-HA610
