Clinical & AnalyticalBB-544157548
Automatic Urine Analyzer
Introduction: Urine analyzer is an automatic instrument for the determination of certain chemical components in urine. It is an important tool for automated urine inspection in medical laboratory. It has the advantages of simple operation and fast operation. Under the control of the computer, the instrument collects and analyzes the color information of various reagent blocks on the test belt, and converts a series of signals to output the chemical composition content in the urine.
Specifications
- PrinciplePhotoelectric colorimetry
- Throughput240 tests/hour
- Screen10.1-inch touch screen
- MemoryCan store more than 1,000,000 test reports
- PrinterBuilt-in thermal printer
- InterfaceUSB, RS232, network interface
- Barcode ScannerCan be optional
- Range of Application9, 10, 11, 14 test strip
- Items9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA
- Sample Rack Capacity100pcs samples(10pcs test tube racks)
- Reagent Tank Capacity600pcs
- Data RetrievalCan be searched by actual date, range date, urine sample number, name, barcode, etc.
- Automatic SensingAutomatically detects and analyzes after placing the sample
- Calibration FunctionYes
- Power130W
- Power SupplyAC100~240V, 50/60Hz
Details
Features: 1. Built-in 10.1-inch touch screen, built-in thermal printer. 2. Sample delivery, injection, droplet, analysis and report output are completed automatically by the instrument. 3. High-precision sample dispenser is used to ensure thorough reaction and improve the accuracy of test results. 4. Automatic strip selection chamber, accommodating 600 test strips at the same time. 5. Supports closed puncture analysis, greatly improving biosafety. Technical Parameters: Model BH-QNY01 BH-QNY02 Cascade Function No Yes Principle Photoelectric colorimetry Throughput 240 tests/hour Screen 10.1-inch touch screen Memory Can store more than 1,000,000 test reports Printer Built-in thermal printer Interface USB, RS232, network interface Barcode Scanner Can be optional Range of Application 9, 10, 11, 14 test strip Items 9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA Sample Rack Capacity 100pcs samples(10pcs test tube racks) Reagent Tank Capacity 600pcs Data Retrieval Can be searched by actual date, range date, urine sample number, name, barcode, etc. Automatic Sensing Automatically detects and analyzes after placing the sample Calibration Function Yes Power 130W Power Supply AC100~240V, 50/60Hz External Size(W*D*H) 662*730*520mm 662*780*520mm Net Weight 48kg 51.5kg Packing Size(W*D*H) 805*880*600mm; 430*340*590mm 805*880*600mm; 430*340*590mm Gross Weight 76.5kg; 15kg 80kg; 15kg Remark: The machine comes standard with 100 test strips.
You may also like
Clinical & Analytical

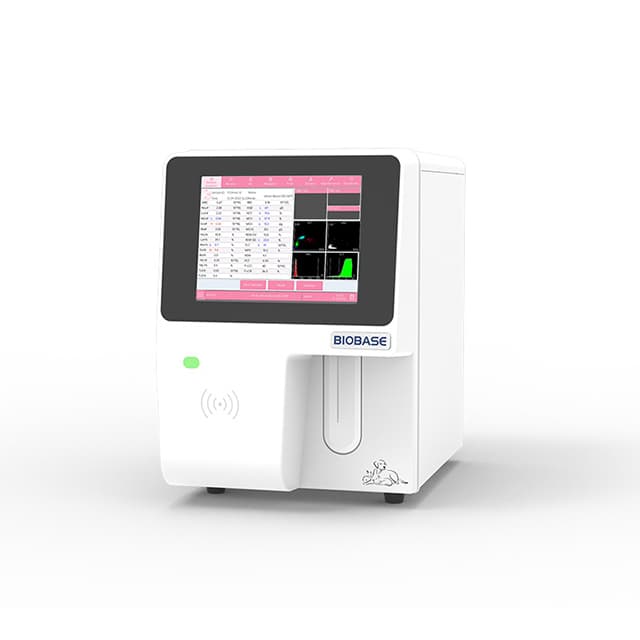

Clinical & Analytical View product5-Part Auto Veterinary Hematology Analyzer BH-HA610VET
Introduction: The 5-Part Auto Veterinary Hematology Analyzer BH-HA610VET is a benchtop analyzer designed for complete blood count testing in veterinary clinics and animal hospitals. It features advanced sweep flow technology for accurate PLT counting, an LCD touchscreen operable with rubber gloves, and one-button testing with one-button fault clearing. The patented SMART-FLOW liquid circuit ensures efficient and reliable fluid handling for daily diagnostic use.

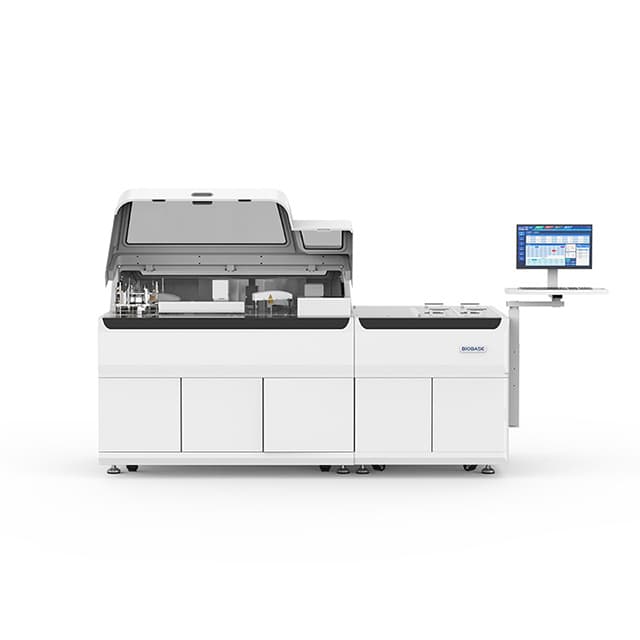

Clinical & Analytical View productAutomatic Chemiluminescence Immunoassay System BKI5800
Introduction: The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers. These particles can be evenly distributed in the liquid phase reaction system, enabling faster reaction speed and higher efficiency. Using the enzymatic chemiluminescence method, the light signal is more stable. It adopts a new generation of enzymatic substrates, with higher sensitivity and faster luminescence.

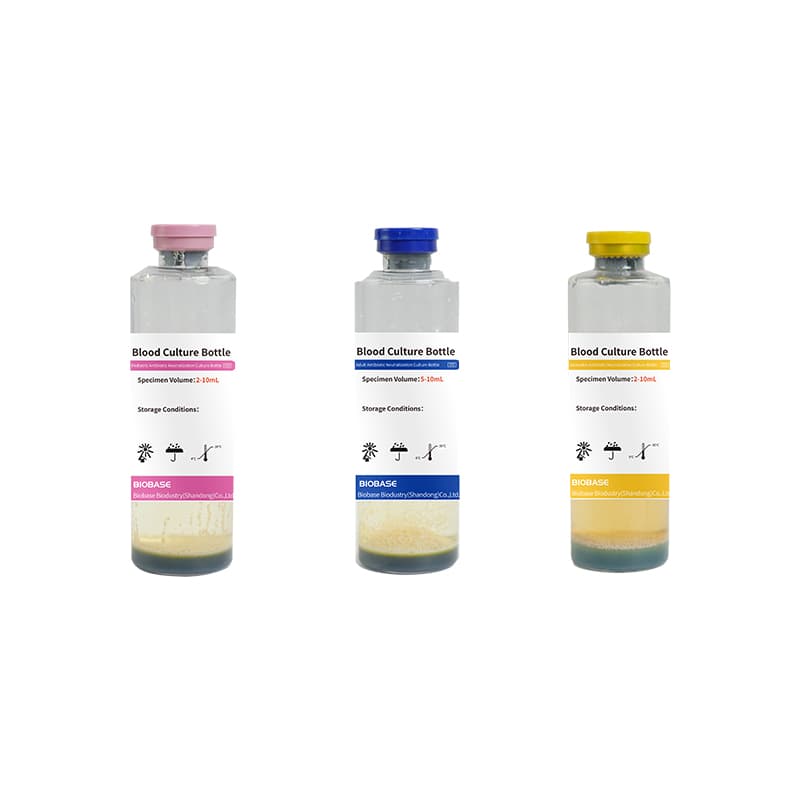

Clinical & Analytical View productBlood Culture Bottle
