Air ProtectionBB-569118768
Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I
Introduction: The Horizontal Laminar Flow Cabinet is an advanced containment system designed to provide a sterile and particle-free working environment, essential for sensitive laboratory procedures. This cabinet ensures a continuous flow of HEPA-filtered air across the workspace, effectively protecting samples from contamination.
Specifications
- Work Surface Height750mm
- Max Opening430mm
- DisplayLCD display
- Airflow Velocity0.30~0.5m/s
- MaterialWorking area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV
- Pre-FilterPolyester fiber
- HEPA FilterOne, 99.995% efficiency at 0.3μm
- Front WindowMotorized
- Noise≤65dB(A)
- Illumination≥300lx
- Vibration≤5μm(rms)
- SafetyColonies number≤0.5CFU/30min
- Clean LevelISO level 5(Class 100)
- Waterproof SocketsTwo sockets, Max. Power: 1000W
- Power SupplyAC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Details
Features: 1. Horizontal laminar flow, single-sided operation. 2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet. 3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter. 4. Work zone is made of SUS304 material, beautiful and corrosion resistance. 5. The front and side Windows are made of 5mm thick tempered glass. 6. Footmaster casters design, convenient cabinet movement and fixation. 7. LCD screen, real-time display of running status(air velocity, timer, UV lamp time, HEPA filter running time). 8. With ultraviolet lamp, fan appointment timing function. 9. Unit conversion function, which switches units between PA and m/s. 10. Equipped with UV light, LED light, waterproof sockets. 11. Perfect alarm system: (1) Ultra-high filter pressure alarm (2) Filter failure replacement alarm (3) Low wind speed alarm 12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window. Technical Parameters: Model BBS-H1300-I BBS-H1800-I External Size(W*D*H) 1300*820*1940mm 1800*820*1940mm Internal Size(W*D*H) 1200*520*570mm 1700*520*570mm Work Surface Height 750mm Max Opening 430mm Display LCD display Airflow Velocity 0.30~0.5m/s Material Working area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV Pre-Filter Polyester fiber HEPA Filter One, 99.995% efficiency at 0.3μm Front Window Motorized Noise ≤65dB(A) Illumination ≥300lx Vibration ≤5μm(rms) Safety Colonies number≤0.5CFU/30min Clean Level ISO level 5(Class 100) Waterproof Sockets Two sockets, Max. Power: 1000W Power Supply AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) Consumption 400W 500W LED Lamp 12W*1 16W*2 UV Lamp 30W*1 30W*1 Standard Accessories Base stand, LED lamp, UV lamp, Waterproof socket*2, Gas tap Base stand, LED lamp, UV lamp, Waterproof socket*2, Gas tap, Water tap Package Size(W*D*H) 1450*1140*1540mm 1950*1140*1460mm Gross Weight 255kg 325kg
You may also like
Air Protection
Air Protection View productAnimal Water Bottle Washer
Introduction: The animal water bottle washer adopts softened water high-pressure spray technology. Through a large-flow circulating pump, the water in the washing chamber circulates in the washing pipeline, and the rotating spray arm evenly sprays water onto the items to be cleaned for powerful rinsing. At the same time, cleaning agent can be automatically added to make the cleaning more effective and thorough. During the cleaning process, the equipment uses clean water in the tank to spray directly onto the water bottles, achieving efficient rinsing effect. It is used for fully automatic spray cleaning of animal water bottles in laboratory animal centers and related units, and can automatically complete the cleaning and rinsing processes.

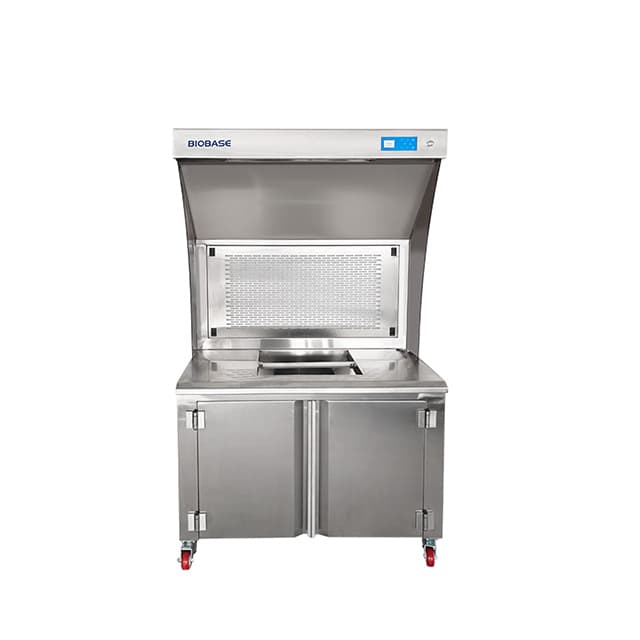

Air Protection View productAnimal Litter Workstation BK-DS1080H
