Lab & Medical RefrigerationBB-544452858
Freezer Racks
Introduction: Freezer Racks are essential laboratory storage solutions designed to efficiently organize and securely hold sample tubes, vials, cryogenic boxes, and other containers in ultra-low temperature freezers.
Details
Features: 1. Made of corrosion-resistant 304 stainless steel for repeated freeze-thaw and long-term storage of samples. 2. It can be used for sample storage in ultra-low temperatures. 3. It can withstand temperature range of -196℃ to 800℃. 4. It is suitable for 1-inch and 2-inch freezer boxes. 5. It is suitable for most standard refrigerators and liquid nitrogen containers. 6. It can be customized. Technical Parameters: Model Specification Material Size(W*D*H)(mm) Freezer Box Size(mm) Freezer Tube BK-LD6 6 layers 304 stainless steel 142*140*344 ≤133*133*52 1.5~2ml BK-LD8 8 layers 304 stainless steel 142*140*455 ≤133*133*52 1.5~2ml BK-LD10 10 layers 304 stainless steel 142*140*568 ≤133*133*52 1.5~2ml BK-LD4X3 4 layers and 3 columns 304 stainless steel 420*140*242 ≤133*133*52 1.5~2ml BK-LD4X4 4 layers and 4 columns 304 stainless steel 560*140*242 ≤133*133*52 1.5~2ml BK-LD5X3 5 layers and 3 columns 304 stainless steel 420*140*290 ≤133*133*52 1.5~2ml BK-LD5X4 5 layers and 4 columns 304 stainless steel 560*140*295 ≤133*133*52 1.5~2ml BK-LD5X5 5 layers and 5 columns 304 stainless steel 685*140*295 ≤133*133*52 1.5~2ml BK-LD6X2 6 layers and 2 columns 304 stainless steel 290*140*348 ≤133*133*52 1.5~2ml BK-LD6X3 6 layers and 3 columns 304 stainless steel 420*140*348 ≤133*133*52 1.5~2ml BK-LD7X5 7 layers and 5 columns 304 stainless steel 685*140*406 ≤133*133*52 1.5~2ml Compatible Freezer Models: Matching Model Layer Count Quantity Per Layer Freezer Rack Total Capacity Freezer Box Specification Matching Freezer Box Size(mm) Quantity of Freezer Boxes Quantity of Samples(100-well freezer box) BDF-86H60 1 4 BK-LD6 4 2 inches ≤133*133*52 24 2400 BDF-86H128 1 6 BK-LD10 6 2 inches ≤133*133*52 60 6000 BDF-150H128 1 9 BK-LD10 9 2 inches ≤133*133*52 90 9000 BDF-150H138 1 12 BK-LD8 12 2 inches ≤133*133*52 96 9600 BDF-150H226 1 20 BK-LD8 20 2 inches ≤133*133*52 160 16000 BDF-86V58 1 2 BK-LD6X2 2 2 inches ≤133*133*52 24 2400 BDF-86V65 1 2 BK-LD5X3 2 2 inches ≤133*133*52 30 3000 BDF-86V65 1 2 BK-LD6X3 2 2 inches ≤133*133*52 36 3600 BDF-86V100 2 2 BK-LD5X3 4 2 inches ≤133*133*52 60 6000 BDF-86V108 2 3 BK-LD4X3 6 2 inches ≤133*133*52 72 7200 BDF-86V168/168T 3 3 BK-LD4X3 9 2 inches ≤133*133*52 108 10800 BDF-86V348/348T 4 3 BK-LD4X4 12 2 inches ≤133*133*52 192 19200 BDF-86V408D/418T 4 4 BK-LD4X4 16 2 inches ≤133*133*52 256 25600 BDF-86V588/588D//608T/608BD 4 4 BK-LD5X5 16 2 inches ≤133*133*52 400 40000 BDF-86V728 4 6 BK-LD5X4 24 2 inches ≤133*133*52 480 48000 BDF-86V838/838D 4 6 BK-LD5X5 24 2 inches ≤133*133*52 600 60000 Matching Model Freezer Box Specification Matching Freezer Box Size(mm) Quantity of Freezer Boxes Quantity of Samples (100-well freezer box) BDF-86H60 BDF-86H128 BDF-150H128 BDF-150H138 BDF-150H226 2 inches 2 inches 2 inches 2 inches 2 inches ≤133*133*52 ≤133*133*52 ≤133*133*52 ≤133*133*52 ≤133*133*52 24 60 90 96 160 2400 6000 9000 9600 16000 BDF-86V58 BDF-86V65 BDF-86V65 BDF-86V100 BDF-86V108 2 inches 2 inches 2 inches 2 inches 2 inches ≤133*133*52 ≤133*133*52 ≤133*133*52 ≤133*133*52 ≤133*133*52 24 30 36 60 72 2400 3000 3600 6000 7200 BDF-86V168/168T BDF-86V348/348T BDF-86V408D/418T 2 inches 2 inches 2 inches ≤133*133*52 ≤133*133*52 ≤133*133*52 108 192 256 10800 19200 25600 BDF-86V588/588D /608T/608BD 2 inches ≤133*133*52 400 40000 BDF-86V728 BDF-86V838/838D 2 inches 2 inches ≤133*133*52 ≤133*133*52 480 600 48000 60000
You may also like
Lab & Medical Refrigeration
Lab & Medical Refrigeration View productCar Refrigerator BCR-5H30C BCR-5H80C
The Car Refrigerator is a portable and efficient cooling device designed to keep your food and beverages fresh while on the go. Perfect for road trips, camping, and outdoor activities, this compact refrigerator ensures you have access to chilled items anytime, anywhere.
Lab & Medical Refrigeration View productPortable Refrigerator 12L
Applications: Applicable institutions: Centers for Disease Control and Prevention(CDC), hospitals, blood banks, Entry-Exit Inspection and Quarantine Bureaus, customs, hotels, third-party laboratories. Applicable specimens: Biological products requiring low-temperature transport, such as vaccines/reagents/stem cells/3373 samples, etc.
Lab & Medical Refrigeration View productTabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT
The Tabletop Pilot Freeze Dryer is a compact, high-performance solution designed for small-scale freeze-drying applications. Ideal for research and development, as well as small batch production, this versatile freeze dryer offers precise control and reliability in a convenient tabletop design.

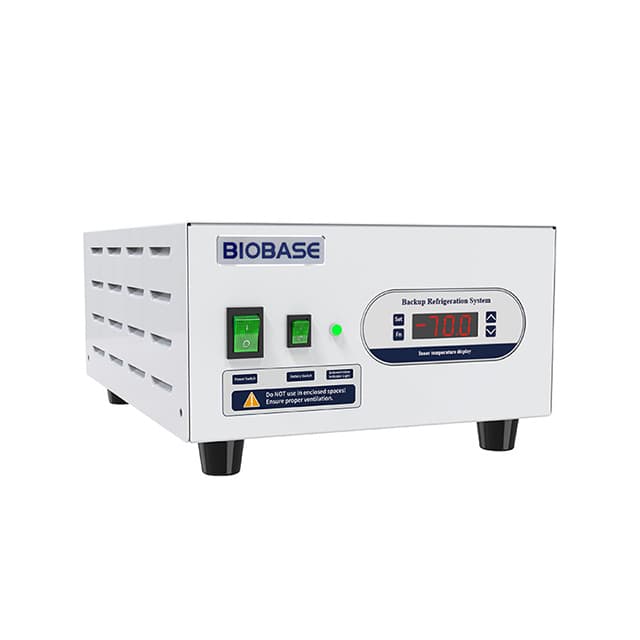

Lab & Medical Refrigeration View productBackup Refrigeration System
