Lab & Medical RefrigerationBB-168047638
Backup Refrigeration System
Introduction: The core function of the carbon dioxide backup system and the liquid nitrogen backup system is to automatically activate and provide a cold source inside the chamber in the event of a main power failure or refrigeration system malfunction, thereby preventing valuable samples from being damaged due to temperature rise.
Specifications
- Housing MaterialCoated high-quality cold-rolled steel, light gray
- Leveling Feet4
- AlarmProbe failure alarm, low battery alarm, high/low temperature alarm, gas source failure alarm
- Power SupplyAC 100~240V, 50/60Hz
- External Size(W*D*H)262*355*158mm
- Package Size(W*D*H)450*355*365mm
- Net Weight8kg
- Gross Weight14.5kg
Details
Features: 1. Adopts a low-temperature solenoid valve for more stable temperature control. 2. Suitable for temperature maintenance of both upright and chest ultra-low temperature freezers. 3. The carbon dioxide backup system maintains a temperature range of -20℃ to -70℃; the liquid nitrogen backup system maintains a temperature range of -40℃ to -86℃. 4. Compatible with liquid nitrogen or liquid carbon dioxide as working media. 5. Applicable to most ultra-low temperature freezers and low-temperature refrigerators equipped with a test port. 6. Customized connector services are available. Technical Parameters: Model BK-CDBS BK-LNBS Temperature Range -20~ -70℃ -40~ -86℃ Gas Source Liquid carbon dioxide Liquid nitrogen Housing Material Coated high-quality cold-rolled steel, light gray Leveling Feet 4 Alarm Probe failure alarm, low battery alarm, high/low temperature alarm, gas source failure alarm Power Supply AC 100~240V, 50/60Hz External Size(W*D*H) 262*355*158mm Package Size(W*D*H) 450*355*365mm Net Weight 8kg Gross Weight 14.5kg
You may also like
Lab & Medical Refrigeration
Lab & Medical Refrigeration View productCar Refrigerator BCR-5H30C BCR-5H80C
The Car Refrigerator is a portable and efficient cooling device designed to keep your food and beverages fresh while on the go. Perfect for road trips, camping, and outdoor activities, this compact refrigerator ensures you have access to chilled items anytime, anywhere.

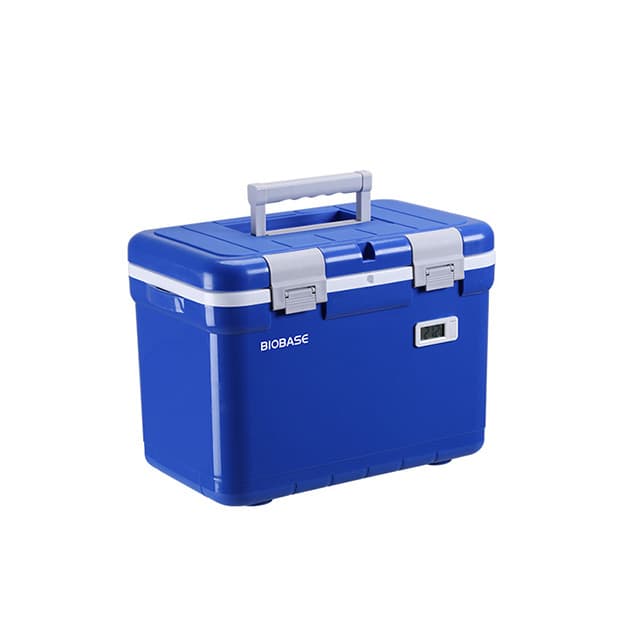

Lab & Medical Refrigeration View productPortable Refrigerator 12L
Applications: Applicable institutions: Centers for Disease Control and Prevention(CDC), hospitals, blood banks, Entry-Exit Inspection and Quarantine Bureaus, customs, hotels, third-party laboratories. Applicable specimens: Biological products requiring low-temperature transport, such as vaccines/reagents/stem cells/3373 samples, etc.

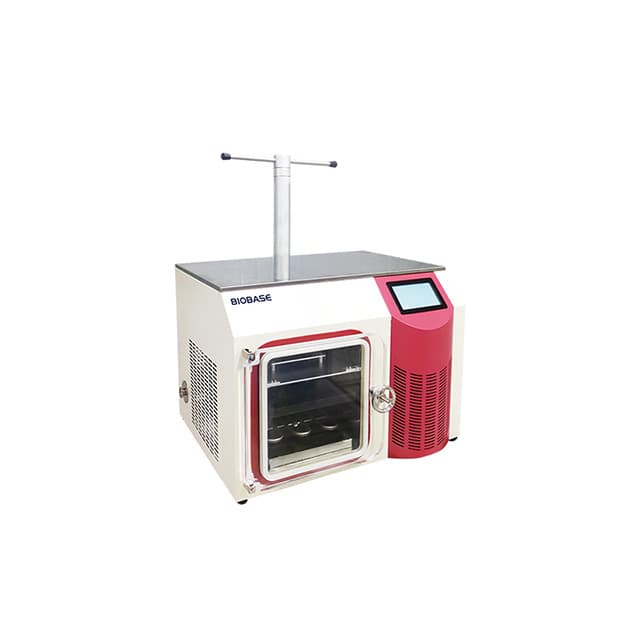

Lab & Medical Refrigeration View productTabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT
