Automated Sample Processing System BK-PR96
Introduction: The BK-PR96 automated sample processing system is suitable for a variety of screw-cap sampling tubes, and can be loaded with the original tube with the cap. It has functions such as automatic opening and closing of the cap, sample handling, and addition of proteinase K/internal standard. 96 samples can be completed within short time, helping laboratories to quickly improve their large-scale nucleic acid testing capabilities.
Specifications
- ModelBK-PR96
- Throughput1~96
- Processing Time96 samples/20min
- Sample TypePlasma, serum, whole blood, swab solution and other samples
- Sample Rack1pc(Compatible with a variety of sampling tubes)
- Robot Arm2pcs(Dispensation arm and screw cap arm)
- Clamping Arm2pcs, independence movement
- Pipetting MethodSpecific mechanical pipetting fluids
- Plate Position3pcs(Compatible with multi-specification deep-well plates)
- Tip Position3pcs(Including tip waste box position)
- Reagent RackYes, 4*4 reagent carrier, can hold bullet cryotube
- Pollution Prevention&ControlExternal droplet capture tray design Aanti-aerosol cross-pollution device UV light Air-tight and anti-drip design
- Liquid DetectionPneumatic liquid level detection principle, intelligent detection of blocked needle
- Pipetting Volume5~1000μl
- Pipetting Accuracy20μl, CV≤2%, Accuracy≤5.0%, 50μl tip
- Power SupplyStandard: 220V, 50/60Hz; Optional: 110V, 50/60Hz
- Power350W
- External Size(W*D*H)1180*680*760mm
- Net Weight105kg
- Package Size(W*D*H)Main instrument: 1293*793*970mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm
- Gross WeightMain instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg
Details
Application : Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases. Work Process: Features: 1. Safety: Equipped with double independent, specific anti aerosol cross contamination device, high efficiency ultraviolet disinfection module, external liquid trap tray. 2. Efficient: 96 samples were processed within 25 minutes, with double manipulator, double sample addition and double screw cover channel. 3. Convenient: 10.1-inch HD touch screen, user-friendly operation interface, one-click software operation, quick mastery; Pull-out scrap TIP storage box design, more convenient cleaning. 4. Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes). 5. Smart: One-key operation, smart dispensation. Technical Parameters: Model BK-PR96 Throughput 1~96 Processing Time 96 samples/20min Sample Type Plasma, serum, whole blood, swab solution and other samples Sample Rack 1pc(Compatible with a variety of sampling tubes) Robot Arm 2pcs(Dispensation arm and screw cap arm) Clamping Arm 2pcs, independence movement Pipetting Method Specific mechanical pipetting fluids Plate Position 3pcs(Compatible with multi-specification deep-well plates) Tip Position 3pcs(Including tip waste box position) Reagent Rack Yes, 4*4 reagent carrier, can hold bullet cryotube Pollution Prevention&Control External droplet capture tray design Aanti-aerosol cross-pollution device UV light Air-tight and anti-drip design Liquid Detection Pneumatic liquid level detection principle, intelligent detection of blocked needle Pipetting Volume 5~1000μl Pipetting Accuracy 20μl, CV≤2%, Accuracy≤5.0%, 50μl tip 1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip Power Supply Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz Power 350W External Size(W*D*H) 1180*680*760mm Net Weight 105kg Package Size(W*D*H) Main instrument: 1293*793*970mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm Gross Weight Main instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg
You may also like
PCR Laboratory
PCR Laboratory View productHigh-throughput Nucleic Acid Detection Workstation
PCR Laboratory View productMonkeypox Virus(MPV) Nucleic Acid Detection Kit(PCR-Fluorescence Probe Method)
Introduction: Monkeypox is a zoonotic disease caused by the monkeypox virus, which can be transmitted from animals to humans as well as from human to human. Monkeypox symptoms often include fever, severe headache, muscle aches, swollen lymph nodes, skin lesions, and more. According to the World Health Organization, more than 50 countries and regions around the world have reported confirmed cases of monkeypox. There is currently no cure for monkeypox, and the World Health Organization urges countries to strengthen surveillance and testing of the infectious disease. This product is based on real-time fluorescent PCR technology, selects the highly conserved region of the monkeypox virus gene coding region as the target region, designs specific primers and fluorescent probes for PCR amplification, and performs PCR amplification on patient serum and lesion leaching fluid (vesicular fluid, pustule fluid) Qualitative detection of monkeypox virus DNA in It is suitable for auxiliary diagnosis of related diseases caused by monkeypox virus infection.
PCR Laboratory View productGene Amplification Instrument
Introduction: The gene amplification instrument is an instrument that performs nucleic acid amplfication by polymerase chain reaction. Mainly used in Medical institutions, clinical gene amplification testing laboratories that meet the requirements, scientific research institutes, universities, etc.

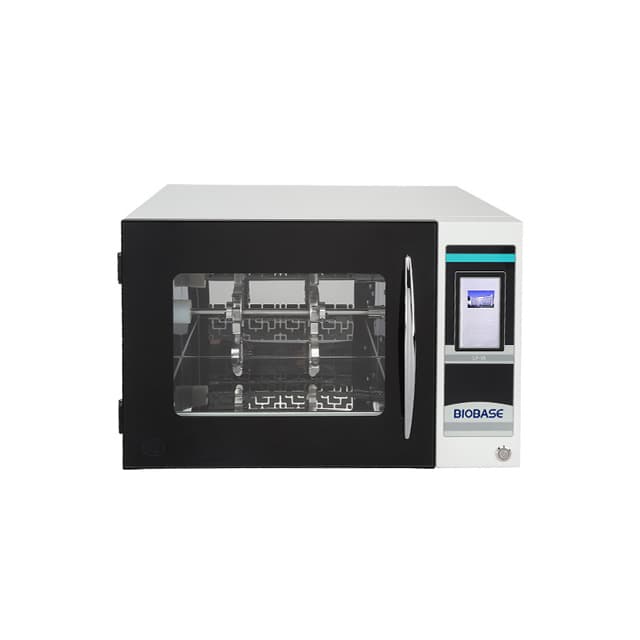

PCR Laboratory View productMolecular Hybridization Furnace
