PCR LaboratoryBB-41666633
Automated Sample Processing System
Introduction: The automated sample processing system can be used with a biological safety cabinet. It can complete lid openinglclosing, dispensing, proteinase K/internal control addition, which helps laboratories quickly improve their large-scale nucleic acid detection capabilties.
Specifications
- Sample TypePlasma, serum, whole blood, swab solution and other samples
- Tip Position3pcs(Including tip waste box position)
- Reagent Rack1pc(4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube)
- Protective FunctionCan be used in a biological safety cabinet External droplet catch tray design With air-tight and anti-drip design
- Liquid DetectionPneumatic liquid level detection principle, intelligent detection of blocked needle
- Pipetting Volume5~1000μl(1000/50μl tip)
- Pipetting Accuracy20μl, CV≤2%, Accuracy≤5.0%, 50μl tip 1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip
- Power SupplyAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Details
Application : Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases. Work Process: Features: 1. Safety: Automated sample processing system buitin UV lamp, and it can be used with a biologicalsafety cabinet, to effectvely prevent aerosol pollution. 2. Efficient: Cooperative processing with dual robotic arms. 3. Convenient: Visual interface operation, easy to operate. 4. Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes) . 5. Smart: One-key operation, smart dispensation. Technical Parameters: Model BK-PR32 BK-PR48 Throughput 1~32 1~48 Processing Time 32 samples/10min 96 samples/16min Sample Type Plasma, serum, whole blood, swab solution and other samples Sample Rack 1pc, 3*12 with locking device(compatible with a variety of sampling tubes) 1pc, 6*8 with locking device(compatible with a variety of sampling tubes) Robot Arm 1pc(Dispensation arm) 2pcs(Dispensation arm and screw cap arm) Plate Position 2pcs(Compatible with l-shaped and square boards) 3pcs(Compatible with multi-specification deep-well plates) Tip Position 3pcs(Including tip waste box position) Reagent Rack 1pc(4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube) Protective Function Can be used in a biological safety cabinet External droplet catch tray design With air-tight and anti-drip design Liquid Detection Pneumatic liquid level detection principle, intelligent detection of blocked needle Pipetting Volume 5~1000μl(1000/50μl tip) Pipetting Accuracy 20μl, CV≤2%, Accuracy≤5.0%, 50μl tip 1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip Power Supply AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) External Size(W*D*H) 540*680*1113mm 827*794*1232mm Net Weight 56kg 100kg Package Size(W*D*H) 670*810*1314mm Main Instrument: 855*855*747mm Base Cabinet: 960*925*975mm Gross Weight 76kg Main Instrument: 75kg Base Cabinet: 65kg
You may also like
PCR Laboratory

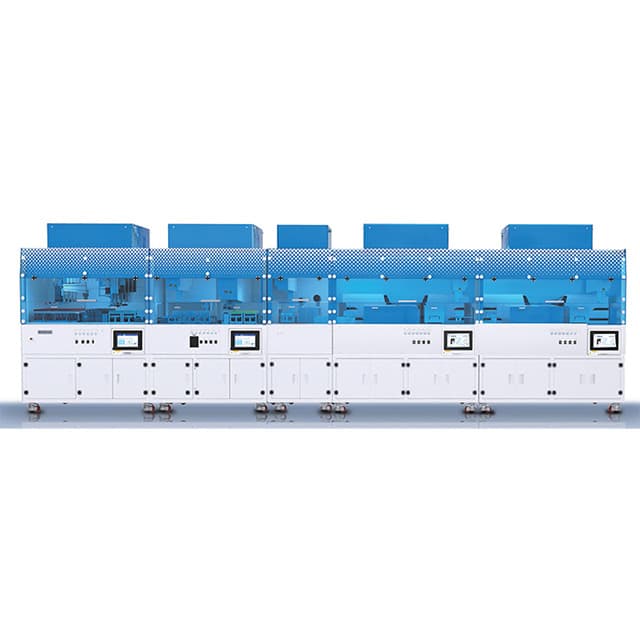

PCR Laboratory View productHigh-throughput Nucleic Acid Detection Workstation

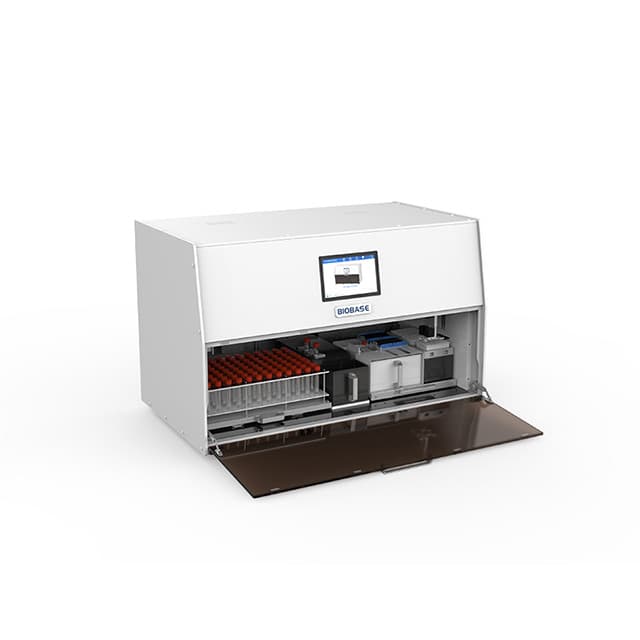

PCR Laboratory View productAutomated Sample Processing System BK-PR96
Introduction: The BK-PR96 automated sample processing system is suitable for a variety of screw-cap sampling tubes, and can be loaded with the original tube with the cap. It has functions such as automatic opening and closing of the cap, sample handling, and addition of proteinase K/internal standard. 96 samples can be completed within short time, helping laboratories to quickly improve their large-scale nucleic acid testing capabilities.
PCR Laboratory View productMonkeypox Virus(MPV) Nucleic Acid Detection Kit(PCR-Fluorescence Probe Method)
Introduction: Monkeypox is a zoonotic disease caused by the monkeypox virus, which can be transmitted from animals to humans as well as from human to human. Monkeypox symptoms often include fever, severe headache, muscle aches, swollen lymph nodes, skin lesions, and more. According to the World Health Organization, more than 50 countries and regions around the world have reported confirmed cases of monkeypox. There is currently no cure for monkeypox, and the World Health Organization urges countries to strengthen surveillance and testing of the infectious disease. This product is based on real-time fluorescent PCR technology, selects the highly conserved region of the monkeypox virus gene coding region as the target region, designs specific primers and fluorescent probes for PCR amplification, and performs PCR amplification on patient serum and lesion leaching fluid (vesicular fluid, pustule fluid) Qualitative detection of monkeypox virus DNA in It is suitable for auxiliary diagnosis of related diseases caused by monkeypox virus infection.

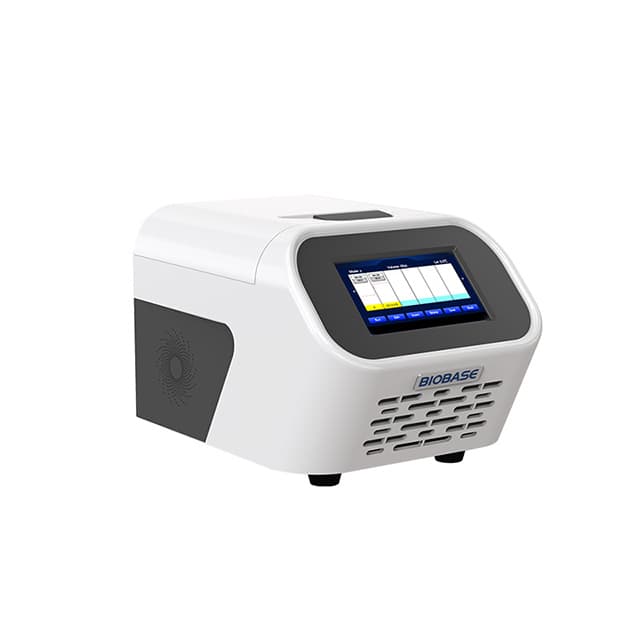

PCR Laboratory View productGene Amplification Instrument
