Air ProtectionBB-46731981

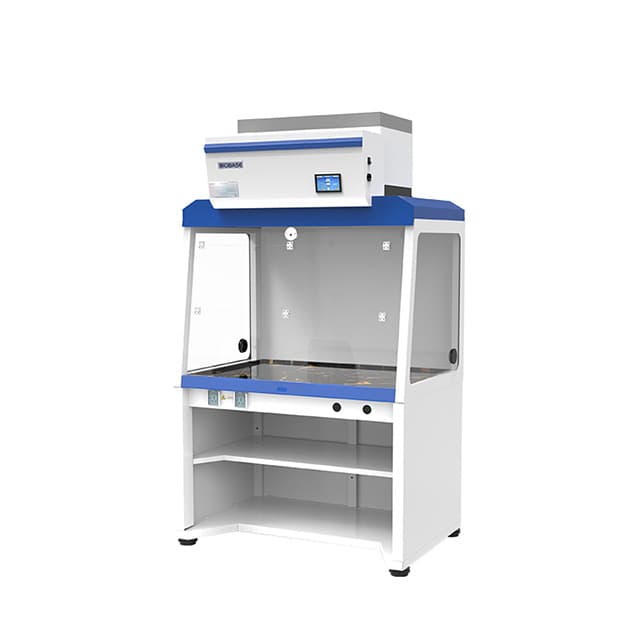

Ductless Fume Hood FH(T)
Introduction: The Ductless Fume Hood is an advanced filtration system designed to protect laboratory personnel from exposure to hazardous chemicals, fumes, and vapors during experiments and processes. Unlike traditional fume hoods, it operates without external ducting, making it an eco-friendly and portable solution ideal for laboratories with space limitations. This hood utilizes high-efficiency filters, such as activated carbon or HEPA filters, to capture and neutralize harmful substances, ensuring a clean and safe working environment.
Specifications
- ModelFH1200(T)
- External Size(W*D*H)1230*830*2120mm
- Instrument Size(W*D*H)1110*740*700mm
- Work Surface Height880mm
- Max Opening650mm
- Air Velocity0.25~0.35m/s
- Airflow Volume136m³/h
- Noise≤58dB(A)
- Fluorescent Lamp12W*2
- BlowerBuilt-in blower
- Front WindowAcrylic window, Manual, Reversal design
- Consumption400W
- Power SupplyAC220V±10%, 50Hz/60Hz; 110V±10%, 60Hz
- Side WindowAcrylic window
- Work tableMarble countertops
- HEPA Filter1pc
- Optional AccessoryUV lamp
- Net/Gross Weight270/320kg
- Base Cabinet1380*1040*1060mm
Details
Features: 1. It meets the acceptance criteria of the platform and can meet the accuracy of the balance use level of one hundred thousand. 2. LCD touch screen control panel, easy to operate. 3. With memory function in case of power-failure. 4. 8°slope front ergonomics design, fatigue-free working posture. 5. Temperature and humidity sensors, can detect indoor temperature and humidity. 6. Three side transparent acrylic windows, front window reversal design, easy to operate. 7. The operating area countertop adopts marble countertop, which can be disassembled for easy cleaning. 8. Electronic control system, anti-overload, anti-electric shock, stable performance, long service life. 9. Inside and outside probe, detect indoor air pollution and filter conditions. Technical Parameters: Model FH1200(T) External Size(W*D*H) 1230*830*2120mm Instrument Size(W*D*H) 1110*740*700mm Work Surface Height 880mm Max Opening 650mm Air Velocity 0.25~0.35m/s Airflow Volume 136m³/h Noise ≤58dB(A) Fluorescent Lamp 12W*2 Blower Built-in blower Front Window Acrylic window, Manual, Reversal design Consumption 400W Power Supply AC220V±10%, 50Hz/60Hz; 110V±10%, 60Hz Material Exterior 1.0mm cold rolled steel sheet, electrostatic spraying Side Window Acrylic window Work table Marble countertops HEPA Filter 1pc Optional Accessory UV lamp Net/Gross Weight 270/320kg Package Size Main Body 1380*1040*1490mm Base Cabinet 1380*1040*1060mm
